Using the 7900-180 Soil Temperature Sensor in Biomet Systems

Printable PDF: Using the 7900-180 Soil Temperature Sensor in Biomet Systems


Download this content as a pdf that can be saved to your computer or printed.

7900-180 Soil Temperature Sensors measure soil temperature and provide that data to a datalogger as analog signals. The 7900-180 sensors are supported by the Basic package (7900-109) and Premium package (7900-119), and custom programs.

Operating Temperature Range: -20 to +50 °C
Nominal Accuracy: ±0.25 °C from 0 to +50 °C
±0.30 °C from -20 to 0 °C
Probe Diameter: 4.8 mm (0.190 in.)
Probe Length: 3.8 cm (1.5 in.)
Cable Length: 15 m

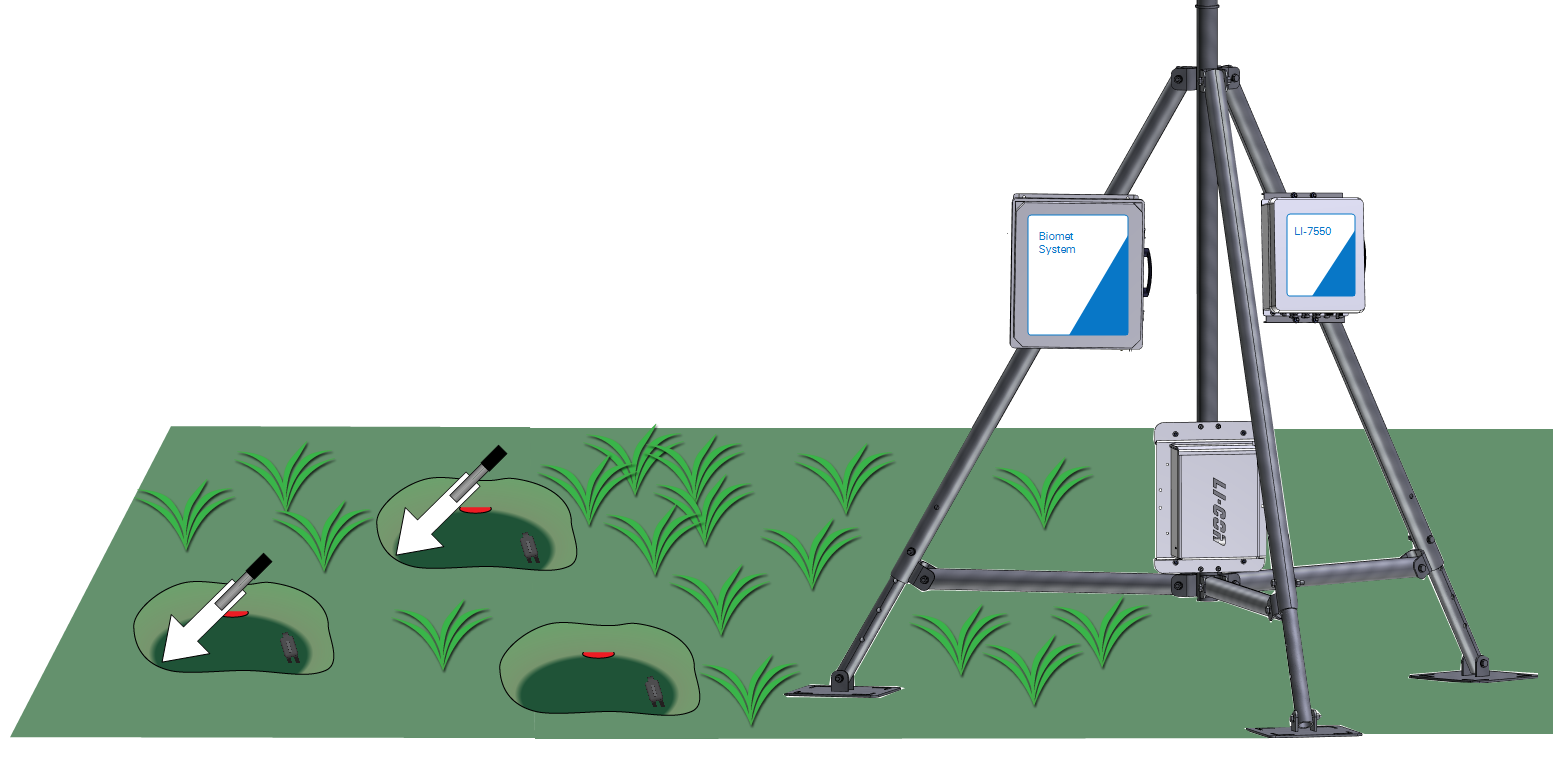

Siting the Soil Temperature Sensors

Place the soil temperature sensors in shallow pits near the soil heat flux plates and soil moisture sensors, in minimally disturbed soil that is representative of the site.

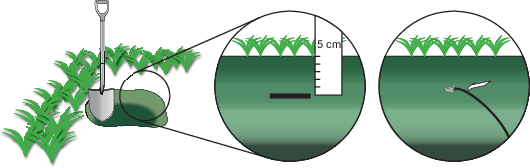

Installing the Soil Temperature Sensors

Bury the sensors between 2 and 6 cm deep. Be sure each sensor is completely covered with soil and that there are no air pockets in contact with the sensor. Bury a short length of cable to prevent thermal conduction through the wires. Fill the hole with the excavated soil, matching the bulk density of the soil removed.

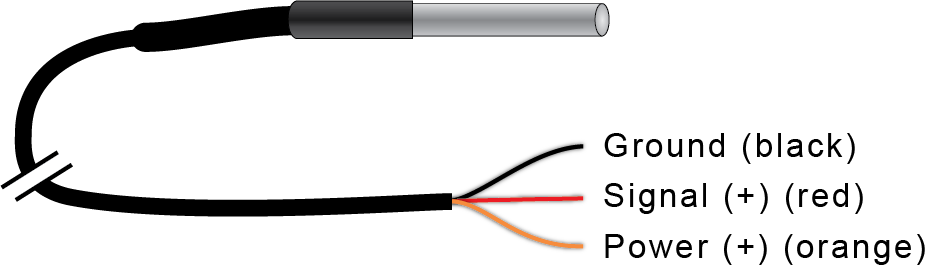

Wiring the Sensors to the System

See Figure 1‑1 and Figure 1‑2 for wiring schematics.

Description Wire Color Terminals (7900-109) DAqM 2 Terminals (7900-119)
Signal + Red A12 A13
Ground Black G6 G6
Power + Orange A15 A15
Signal + Red A13 A14
Ground Black G7 G7
Power + Orange A16 A15
Signal + Red A14 A16
Ground Black G7 G8
Power + Orange A16 A15
Figure 1‑1. Terminals for soil temperature sensors with the basic sensor package (7900-109).
Figure 1‑2. Terminals for soil temperature sensors with the premium sensor package (7900-119). Leads connect to the second data acquisition module.

Retrieving Data

If the system is configured to log biomet data in .ghg files for processing in EddyPro software or the SmartFlux System, data are stored on the removable USB storage device. Refer to the Biomet Instruction Manual for details.


Soil temperature sensors require little maintenance. Confirm proper operation by examining data. Typically, erroneous data indicates an improperly connected sensor, insecure connections, or a faulty sensor. Check the sensor for proper wiring and secure connections.
