Overview of the TDK-Lambda DC-DC Converter

The TDK-Lambda DC-DC Converter regulates output voltage to about 12 VDC, which makes it possible to power devices with a low voltage limit, including some sonic anemometers, data loggers, and peripheral components.

Installing the TDK-Lambda DC-DC Converter

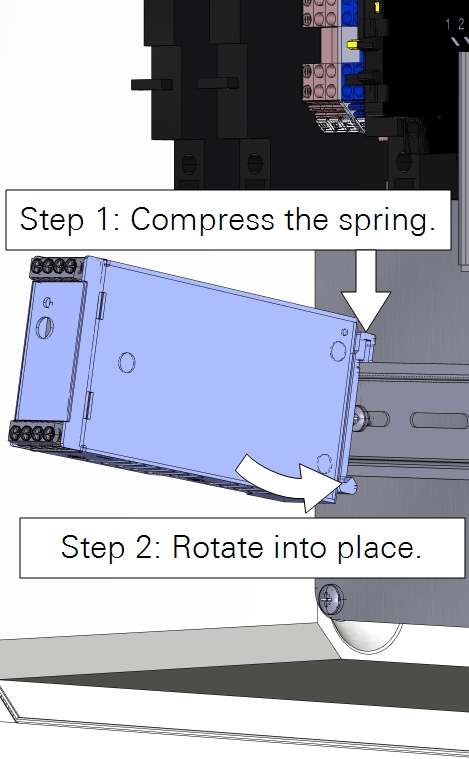

The DC-DC converter mounts to a DIN rain in the lower left of the enclosure. Compress the spring the in the DIN clip and rotate the converter into place.

Connecting the Power Supply

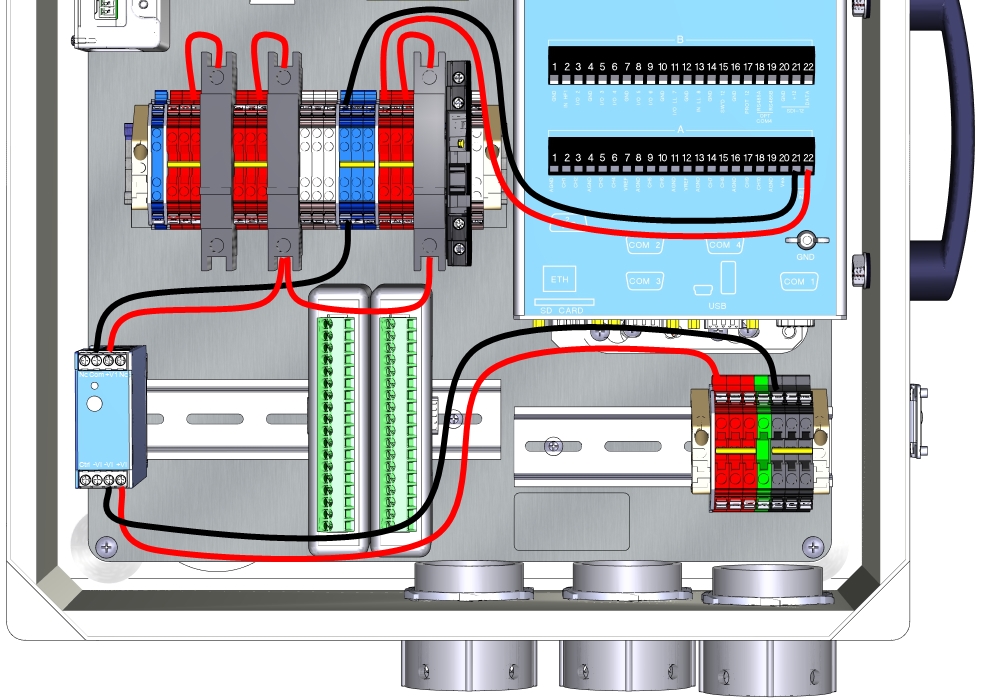

In this application, you'll connect the incoming power to the charge controller Input terminals and connect the regulated power (from the charge controller Output terminals) to the appropriate DIN terminals.

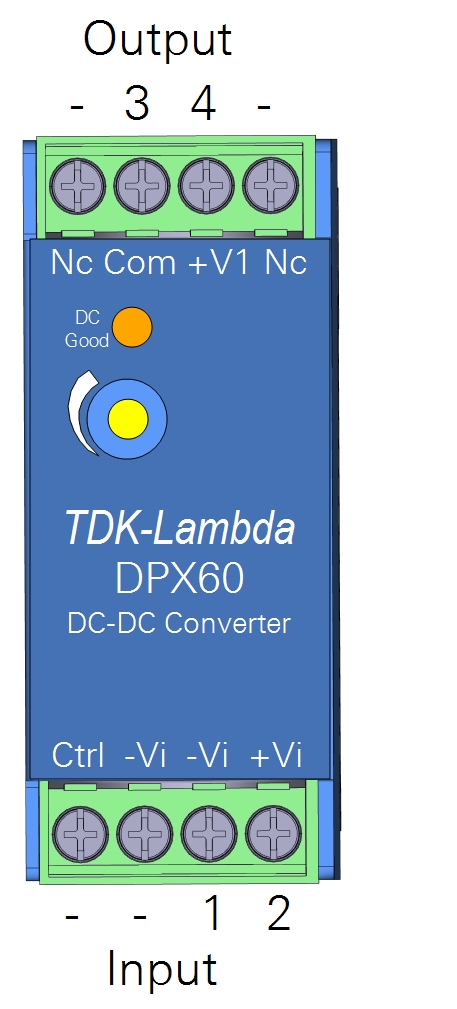

TDK-Lambda Terminal	Pin	Label	Wire	DIN Terminal
Input	1	-Vi	Black	DIN 5
Input	2	+Vi	Red	DIN 1
Output	3	Com	Black	DIN 18
Output	4	+V1	Red	Breakers (as shown)

Additional Information

You can get full documentation for the TDK-Lambda DC-DC converter from the manufacturer's website: us.tdk-lambda.com/lp/products/dpx-series.htm.
