Specifications

Hughes 9502 Specifications

Satellite TX Frequency: @1626.5 – 1675 MHz

Satellite RX Frequency: @1518 – 1559 MHz

GPS Frequency: @1574.42 – 1576.42 MHz

9502 Module

Weight: 1.12 kg

Dimensions: 150 mm x 200 mm x 45 mm

Water and Dust Resistance: IP-40 compliant

Nominal Input Voltage: 12 VDC/24 VDC

Power Consumption:

Transmit: <20W

Narrow Beam w/o Transmit: 3W

Idle: <1W

Off (wake on packet): <10mW (@12 VDC)

Off (wake on packet): <30mW (@24 VDC)

Off (GPIO control): 0W

Data Connectivity: RJ45 (Ethernet); USB

Antenna

Weight: 1.85 Kg (excluding mount and cable)

Dimensions: 385 mm x 385 mm 33 mm

Wind Loading: Survival wind loading (with mount) up to 100 mph

Water and Dust Resistance: IP-65 compliant

Antenna Cable Length: 10 m

Operating Temperature Range: -40° C to 75° C

Storage Temperature Range: -55 °C to 75 °C

Humidity Range: 95% RH at 40 °C

Other Features:

Single external BGAN Satellite and GPS antenna connection

GPS module inside 9502 module

3 status LEDs

Antenna point audio tone and voltage level indicator through audio jack.

SIM/USIM Slot (behind SIM door)

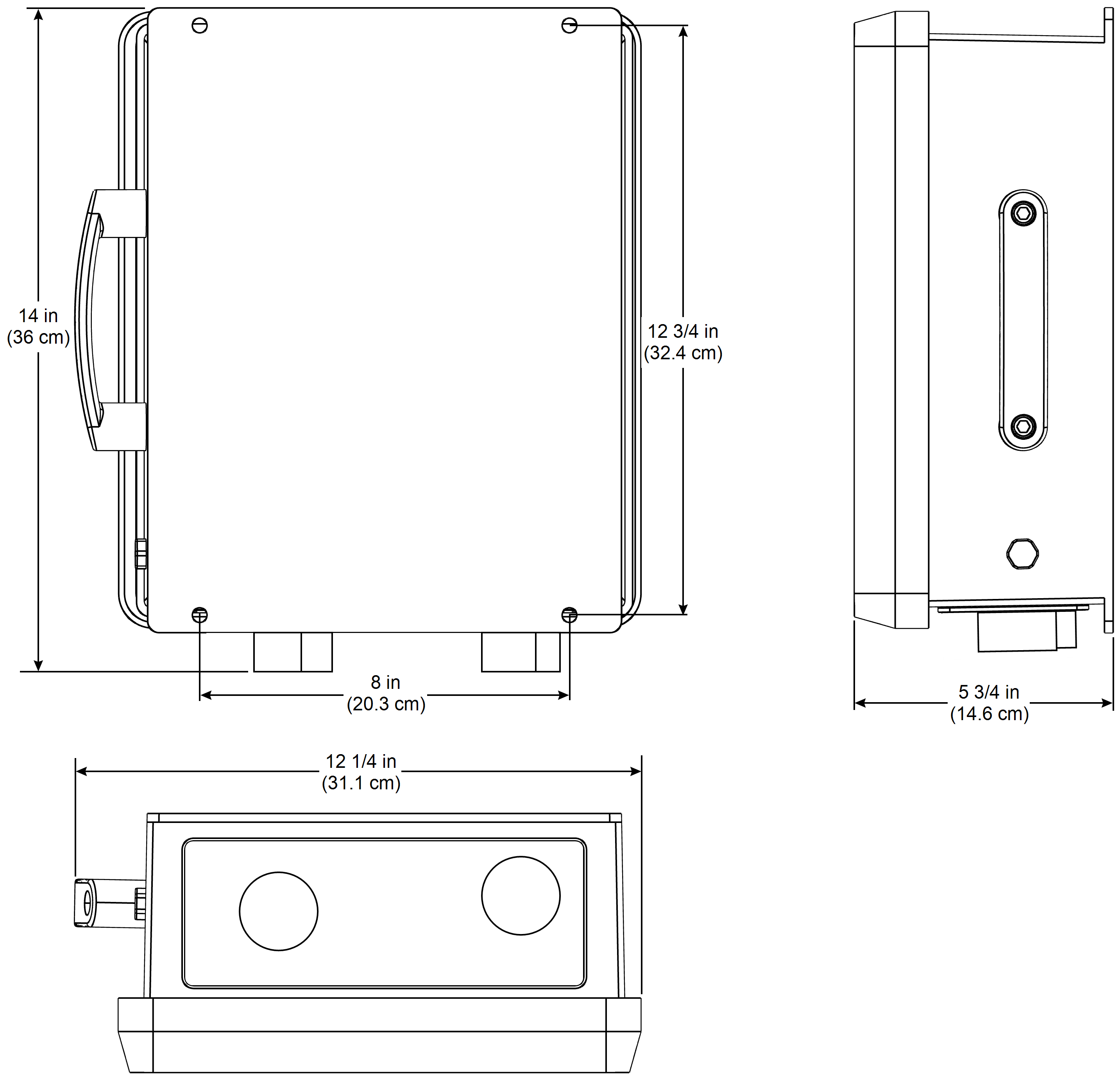

Enclosure Dimensions
