Pin assignments

The LI-8100A uses a round Turck connector on the side panel for RS-232 serial output. An RS-232 serial cable (part number 392-10587) with a round Turck connector and a DB-9 connector attaches to the LI-8100A RS-232 serial port. The pin assignments for the DB-9 connector on the 392-10587 cable are given below; note that not all pins are used for communication between the LI-8100A and a computer. If you want to make a custom cable for use with the LI-8100A, follow the list below for the proper connections.

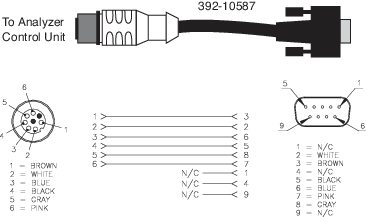

The 392-10587 RS-232 cable pin assignments are as follows:
