8200-105

OPAQUE AUTOMATED CANOPY CHAMBER

Design Your System

HIGH-PRECISION CANOPY GAS EXCHANGE MEASUREMENT

Extend the proven performance of the LI-8250 Multiplexer Soil Gas Flux System from soil to canopy with the 8200-105 Opaque Automated Canopy Chamber. Designed to integrate seamlessly with LI-COR's multiplexer and SoilFluxPro™ Software, this chamber expands trusted LI-8250 gas flux measurements beyond the soil surface to the whole-plant and canopy scale.

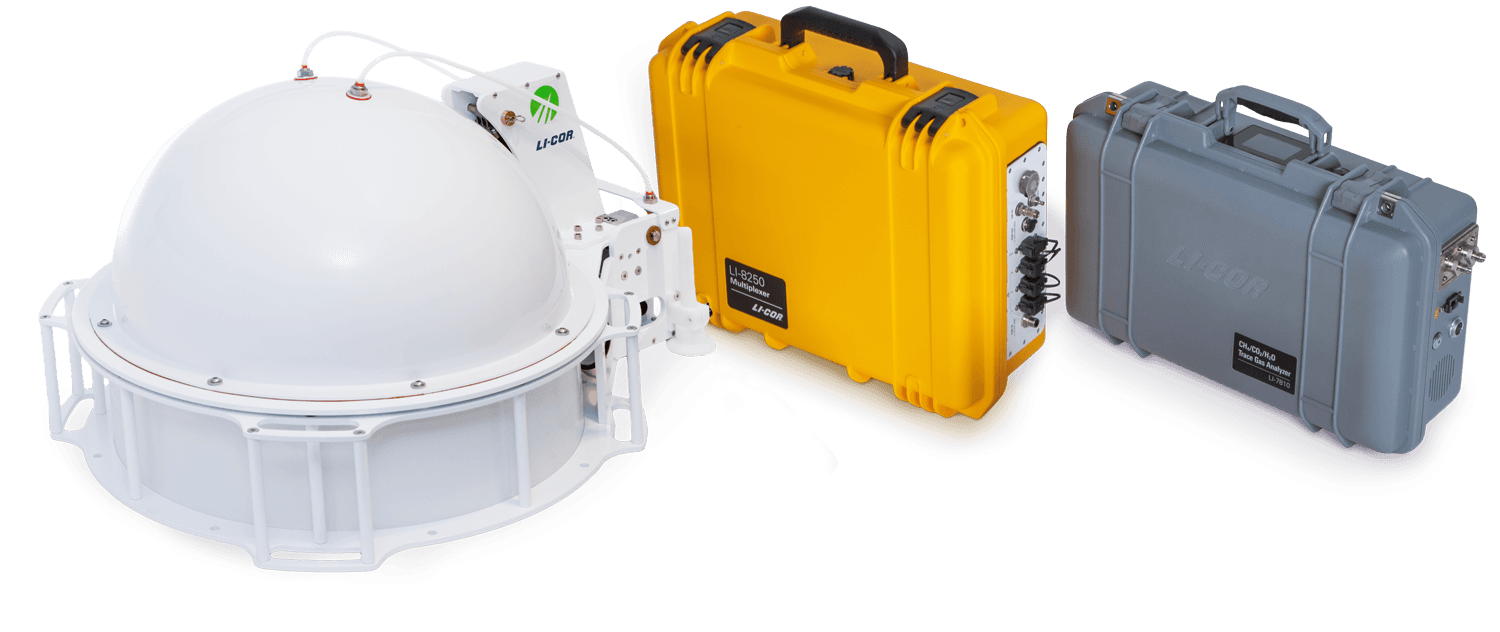

8200-104 Chamber

The Opaque Automated Canopy Chamber is purpose-built for applications that demand a large observation volume. Its design incorporates scientific best practices and features:

  • Seamless integration into the LI-COR soil gas flux family, including the LI-8250 Multiplexer System and the LI-7800 Trace Gas Analyzers
  • Automated, curated flux data processing enabled by SoilFluxPro™ Software
  • Web interface for convenient phone or tablet access to operation panel
  • 52-cm diameter opaque chamber footprint
  • Durable, weather-resistant design ensures reliable, high-quality data collection
  • Chamber height up to 1.35 m for flexible deployment

Webinar

From Soil to Canopy: Advancing Ecosystem GHG Measurements with the LI-8250 Multiplexer Soil Gas Flux System

From Soil to Canopy: Advancing Ecosystem GHG Measurements with the LI-8250 Multiplexer Soil Gas Flux System

Register Now

SPECIFICATIONS

  • HARDWARE
    • Enclosure: Aluminum/Acrylic/ABS
    • Gas Lines: Bev-A-Line® (PTFE optional)
    • Auxiliary Sensor Ports: 2
  • DIMENSIONS
    • Chamber Volume (V): 0.072 m3
    • Exposed Soil Area (SA): 0.21 m2
    • Reach (chamber to analyzer): 30 m
    • Overall Size (max. L x W x H):
      • Closed 90 x 61 x 45 cm
      • Open 90 x 61 x 92 cm
    • Weight: 17 kg
  • OPERATING ENVIRONMENT
    • Temperature: 0 to 50 ºC
    • Humidity: 0-100% RH non-condensing
  • ENVIRONMENTAL SENSORS
    • Air/Chamber Temperature: 0 to 50 ºC
    • Barometric Pressure: 30 to 110 kPa
  • POWER
    • Operating Voltage: 12-15 V DC
    • Operating Power (in motion): < 17 W (1.4 A)
    • Operating Power (closed/open): < 1 W (0.1 A)
  • LIGHT SENSOR CURRENT INPUT
    • Range: 0 to 100 µA
    • Resolution: 1.5 nA
    • Accuracy: ±(0.37 % of Reading + 8 nA) from -20 to 50 °C
  • SDI-12 COMMUNICATIONS INTERFACE
    • Max Number of Devices: 10
    • Output Voltage: 12 VDC, 200 mA
  • OTHER FEATURES
    • Exterior: Opaque
    • Collar Height: 10 cm, or 20 cm

Specifications subject to change without notice.
