Custom chamber template

The following diagrams can be used as templates to determine drilling locations on a custom chamber.

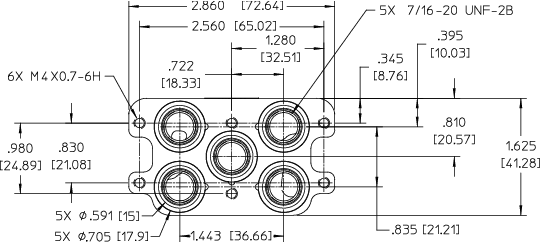

Figure 2‑2. Custom chamber interface dimensions. Inches are given first, followed by millimeters in brackets.

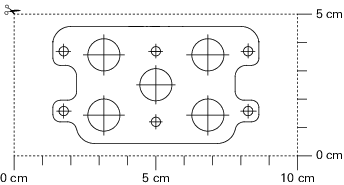

Figure 2‑3. 1:1 template showing drilling locations for the custom chamber.
