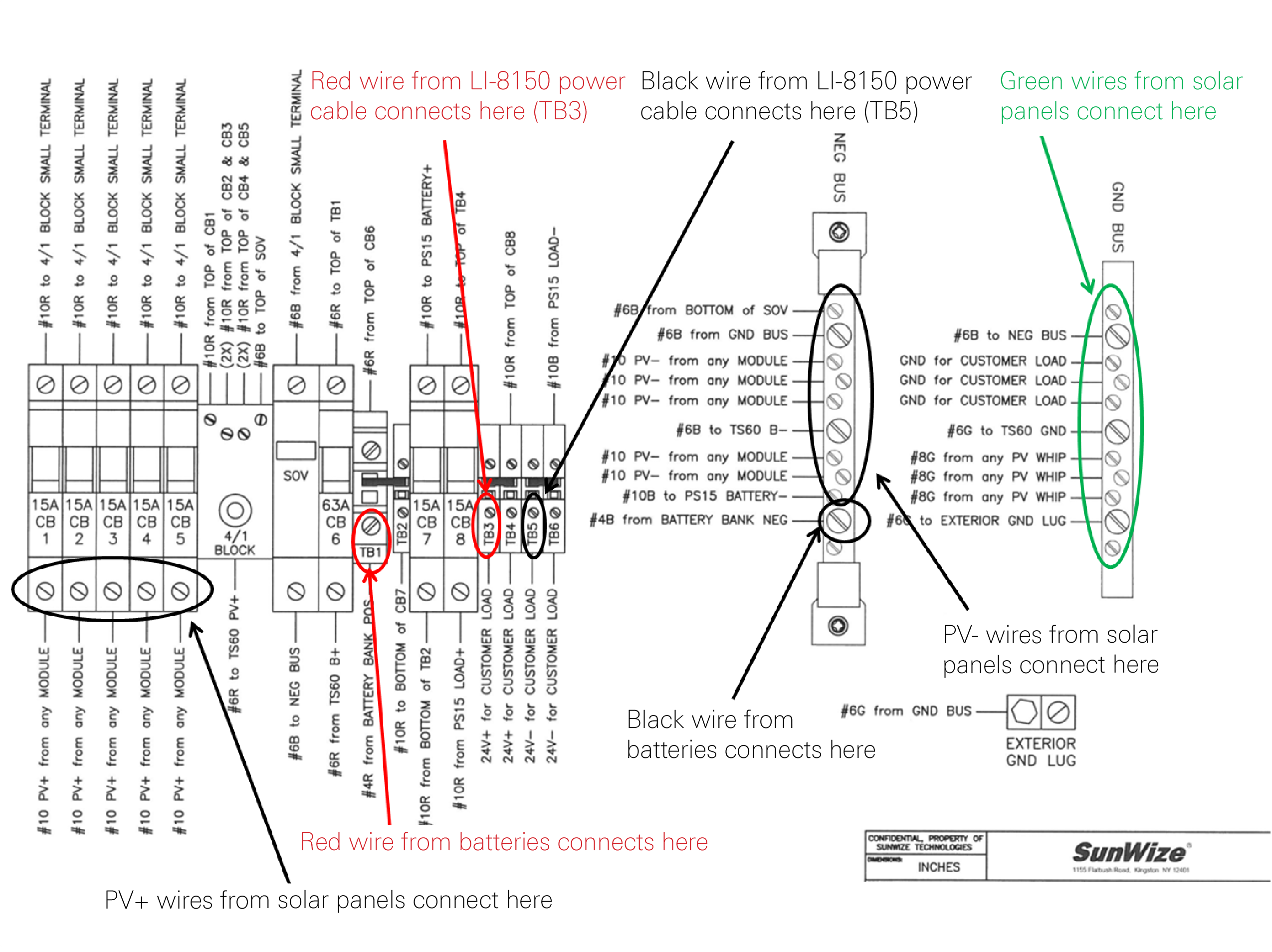

Figure 1‑1. Connect the red and black bare wire leads from the LI-8150 multiplexer power cable to TB3 and TB5 in the solar panel battery box. Wiring diagram courtesy of SunWize®. Used with permission.
