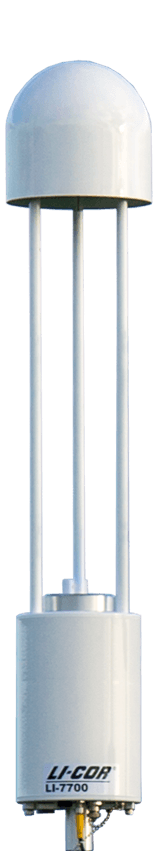

LI-7700 Open Path CH4 Analyzer

Fast open-path CH4 measurements in ambient air

Get a QuoteDesign Your System

Built for eddy covariance, the LI-7700 Open Path CH4 Analyzer is the only open-path methane analyzer designed for field deployment in eddy covariance systems. It delivers high-speed CH4 measurements in ambient air with low power needs and minimal upkeep in real-world conditions.

  • Take 40 measurements per second even in the most demanding or remote environments.
  • Use ~8 W during normal operation, making it ideal for use with solar power supplies.
  • Reduce complexity with open-path, in-air measurements—no pumps or tubes required.

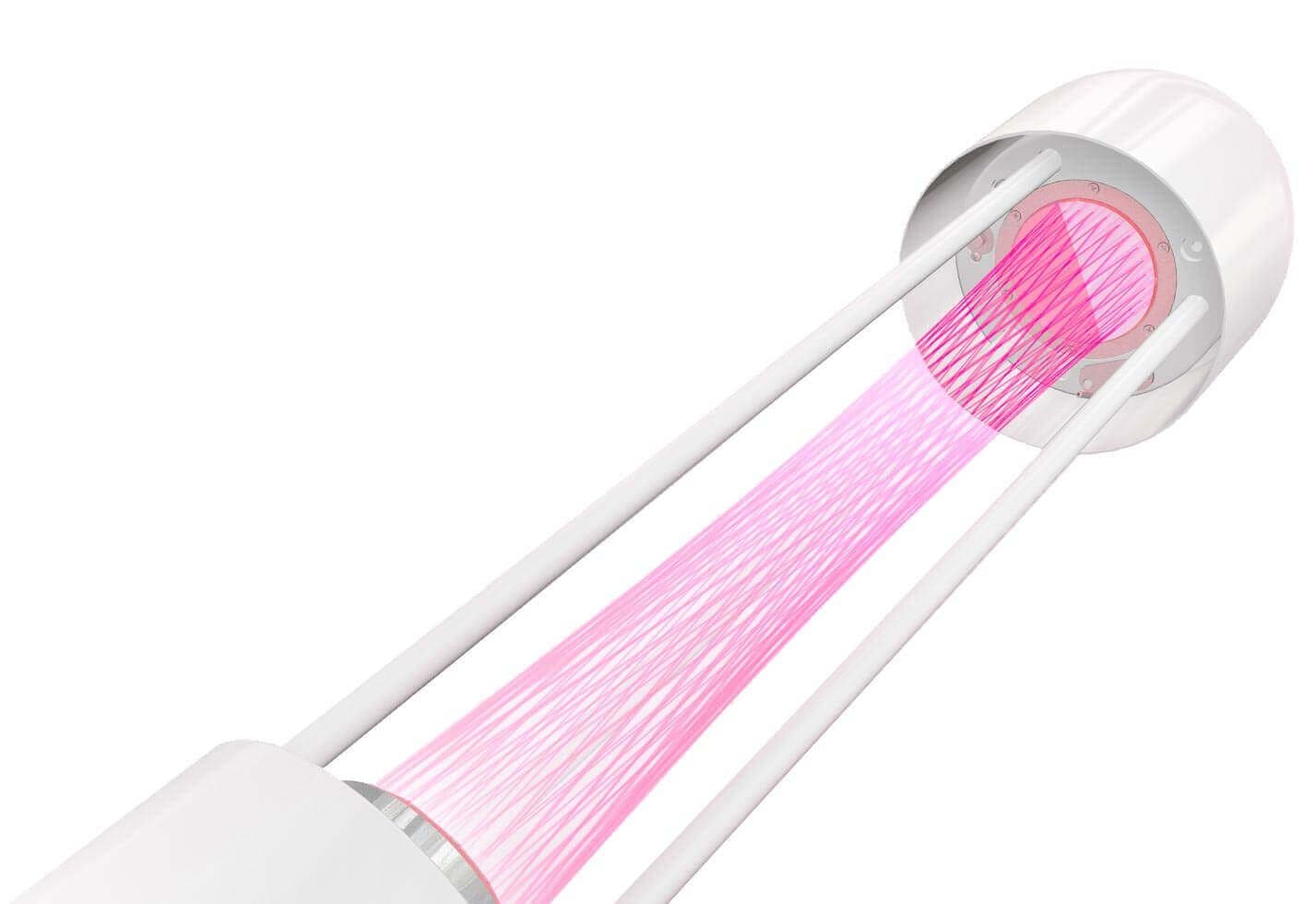

  • Capture accurate, precise CH4 data using Wavelength Modulation Spectroscopy (WMS).

Webinar


LI-COR Cloud®: How to Connect Your Eddy Covariance System

Watch Now

KEY FEATURESof the LI-7700 Open-Path CH4 Analyzer

Less Downtime

Heated mirrors keep optics clear in humid conditions, letting you spend less time servicing and more time collecting data.

The Complete Picture

Add a 3D sonic anemometer for wind measurements and collect meteorological, radiation, and soil data with LI-COR Biomet System sensors.

Built for Remote, Off-Grid Sites

Conduct long-term, solar-powered deployments in hard-to-reach locations with its ~8 W (typical) power requirement.

Effortless System Integration

LI-7700-based eddy covariance systems gain access to LI-COR Cloud® and its next-generation data processing and analysis tools.

Proven Performance

The Global Standard in Eddy Covariance

See the LI-7700 Open-Path CH4 Analyzer in action. Adapted from a 2011 AmeriFlux poster, these figures demonstrate the analyzer’s performance in real-world conditions.

View Poster

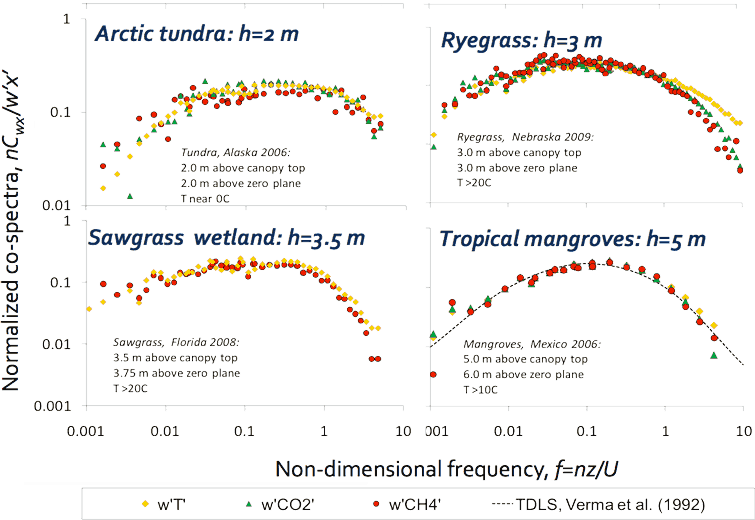

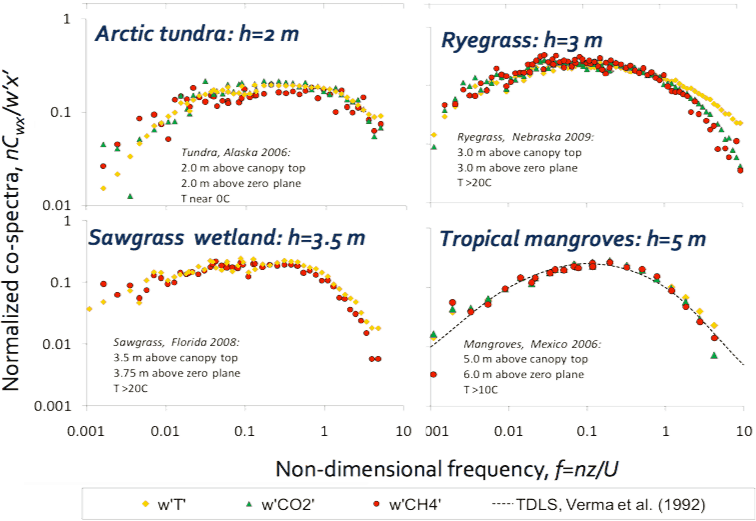

Frequency Response chart
Figure 1: Frequency response. Spectral and co-spectral analysis is a powerful tool for evaluating the performance of the sonic anemometer and the gas analyzer. The normalized power spectrum of the LI-7700 follows the theoretical curve (above), indicating the LI-7700 has sufficient resolution and response time for eddy covariance flux measurements.

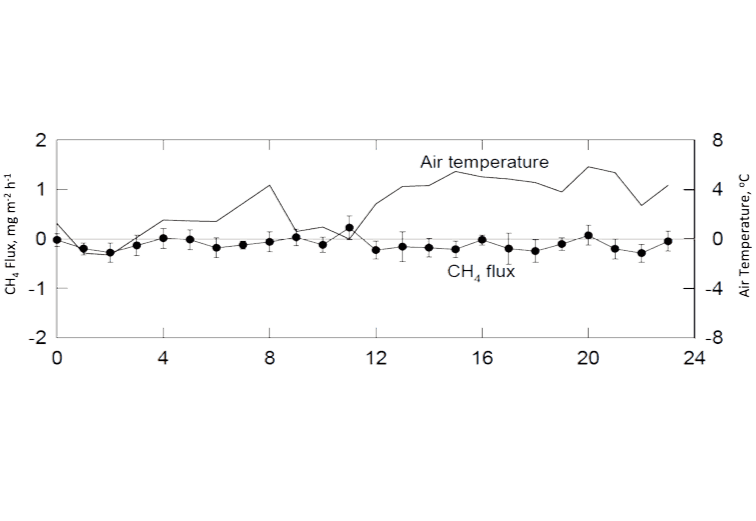

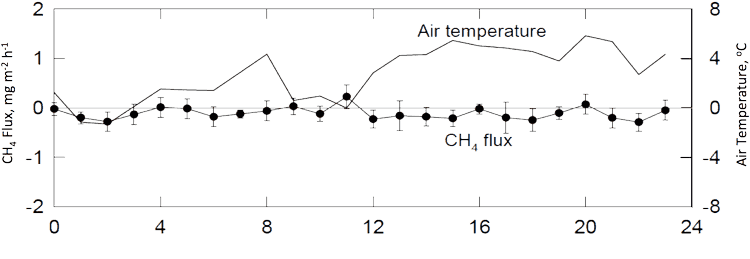

Zero-flux test chartZero-flux test chart
Figure 2: Zero-flux test. The averaged hourly flux data are from a methane eddy-covariance flux system at a zero-flux site in Nebraska. Chamber-based soil methane emission measurements over several years show no methane emissions.

Next-Gen Data Analysis for Eddy Covariance SystemsNext-GenData Analysis for Eddy Covariance Systems

Bring your system online. Each LI-COR eddy covariance system is equipped with SmartFlux® Core, the on-site hardware that sends data to LI-COR Cloud.

Explore

Remote Data Access

View, share, and download data from your or your collaborators' labs—from anywhere in the world.

Multi-User Data Sharing

Allow other researchers to conveniently access your data—even if they do not own a LI-COR device themselves.

Tailored Data Analytics

Access detailed analytics built from your CH4 analyzer’s data streams within LI-COR Cloud.

Streamlined Site Setup

Follow a straightforward, guided configuration that anyone on your team can do—no technical expertise required.

Design Your Own System

Outfit your eddy covariance site with pre-configured sensor packages made to fit your research needs. Choose a package when you create your own EC system today.

Design Your System

Specifications

LI-7700 Specifications

  • Resolution (RMS noise): 5 ppb @ 10 Hz and 2000 ppb CH4
  • Measurement Range: 0 to 25 ppm @ -25 °C, 0 to 40 ppm @ 25 °C
  • Data Communication: Ethernet (up to 40 Hz)
  • Detection Method: Wavelength Modulation Spectroscopy 2f detection
  • Operating Pressure Range: 50 to 110 kPa
  • Output Bandwidth: up to 20 Hz
  • Operating Temperature Range: -25 to 50 °C
  • Power Requirements: 10.5 to 30 VDC
  • Power Consumption: 8 W nominal, 16 W during cleaning cycle
  • Dimensions:
    • Sensor: 14.33 cm dia (5.64 inches), 82.8 cm height (32.6 inches)
    • Optical Path: 0.5 m physical path (1.65 ft), 30 m measurement path (98.4 ft)
  • Weight: 5.2 kg (11.5 lbs)
  • User Interface: Windows®-based software supports all setup, configuration, and calibration functions through an Ethernet connection

7700-101 Mirror Cleaner Specifications

  • Pump Operating Temperature Range: -10 °C to 50 °C
  • Weight: 3.2 kg (7 lbs)
  • Dimensions: 44.5 x 32.8 x 15 cm (17.5 x 12.9 x 6 inches)
  • Fluid Capacity: 4 liters (1.1 U.S. Gallon)

LI-7550 Specifications

  • Data Storage: Removable USB Storage Device. 16 Gigabytes Provided (expandable with user-supplied Industrial Grade USB Flash Drive)
  • Data Communication:
    • Ethernet: up to 40 Hz
    • Synchronous Devices for Measurement (SDM): up to 33.3 Hz
    • RS-232: 57,600 baud, 20 records per second max.
    • DAC: 0-5 V, 40 Hz
  • Bandwidth: Up to 20 Hz
  • Inputs: Ethernet, 4 analog inputs, differential ±5 V, 16-bit
  • Operating Temperature Range: -25° to 50° C
  • Power Requirements: 10.5 to 30 VDC
  • Power Consumption: 10 W nominal
  • Dimensions: 35 x 30 x 15 cm (13.8 x 12 x 6 inches) external dimensions
  • Weight: 4.4 kg (10 lbs)

Specifications subject to change without notice.
