Baseline atmospheric gas measurements provide data that advances the understanding of long-term global change and atmosphere-surface interactions. These measurements depend on rigorous protocols and dependable gas analyzers to ensure that data satisfy quality objectives.

AtmospherIQ™ Gas Analyzers are designed to provide high-quality, continuous, traceable atmospheric gas measurements. Built with the proven Optical Feedback – Cavity Enhanced Absorption Spectroscopy (OF-CEAS) platform, AtmospherIQ™ Gas Analyzers bring a cascade of benefits to atmospheric monitoring stations.

View Solutions

Upcoming Webinar


A New Standard in GHG Network Monitoring: Meet the AtmospherIQ Gas Analyzers

Register Now

A NEW STANDARD FOR ATMOSPHERIC GAS MEASUREMENTS

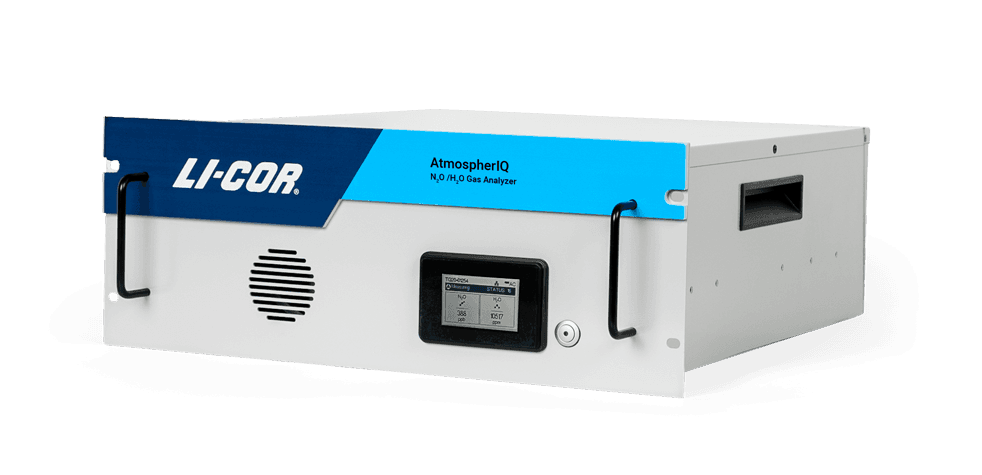

AtmospherIQ gas analyzer
  • Measure N2O, CH4, CO2 in air with industry leading precision and stability.
  • Measurement performance meets compatibility goal of the World Meteorological Organization (WMO) and satisfies specification requirements for the Integrated Carbon Observatory System (ICOS).
  • Market-leading 5-year service agreement with loaner instruments included, if needed, comes standard with each analyzer. No questions asked.
  • Patented technologies optimize the proven Optical Feedback – Cavity Enhanced Absorption Spectroscopy (OF-CEAS) platform for atmospheric monitoring.
  • Backup battery power ensures continuous logging and elegant shutdown if main power is lost.

WE LET THE DATA SPEAK FOR ITSELF

Independent tests show that the performance of the AtmospherIQ optical bench is comparable to other gas analysis technologies currently used in atmospheric monitoring stations.

ALLAN DEVIATION CURVES

Allan deviation characterization, the statistical method widely used for evaluating atmospheric monitoring gas analyzers, show that AtmospherIQ Gas Analyzers meet or exceed the performance requirements of the WMO and ICOS.

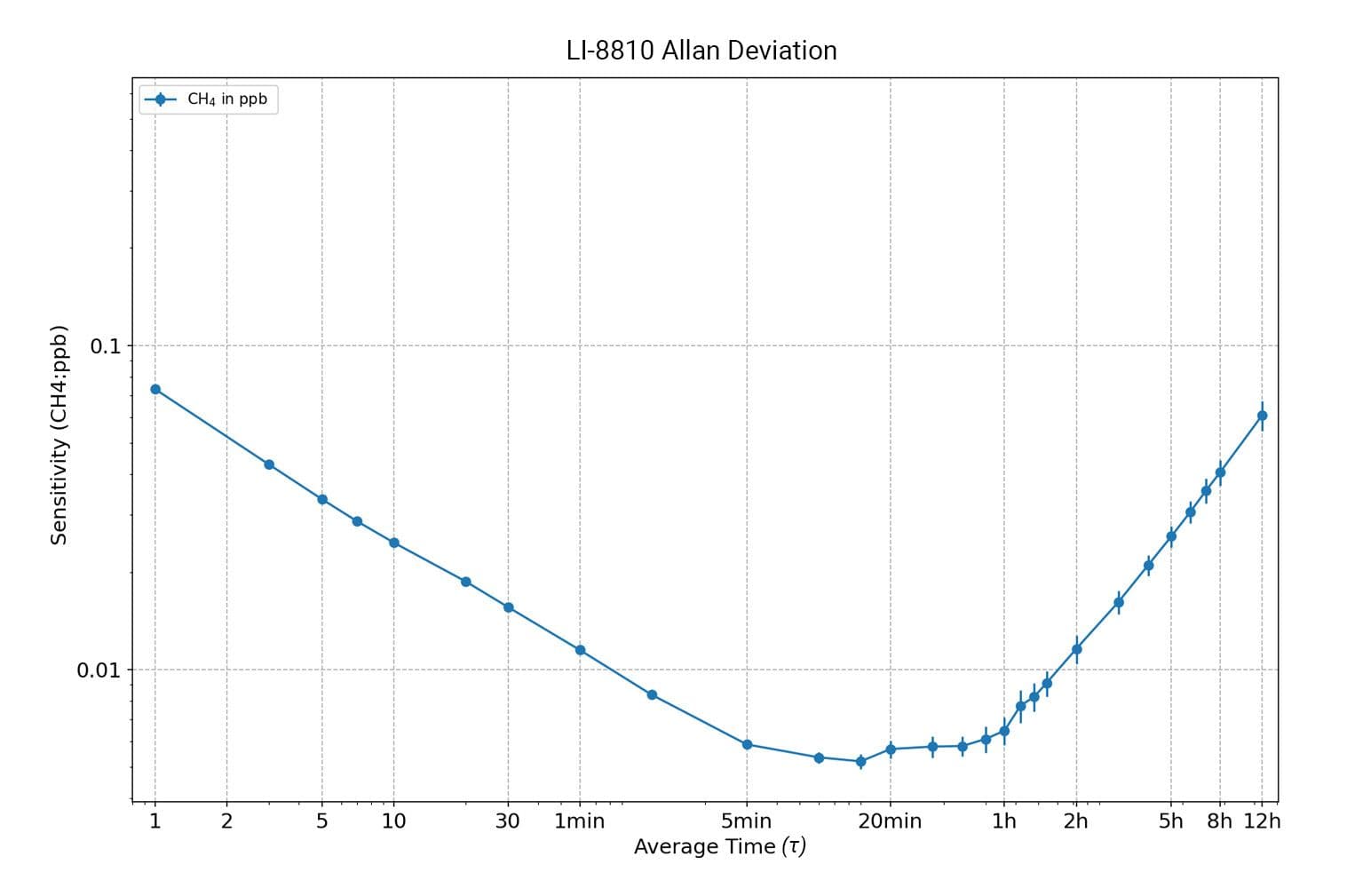

AtmospherIQ gas analyzer

LI-8810

CH4 Performance

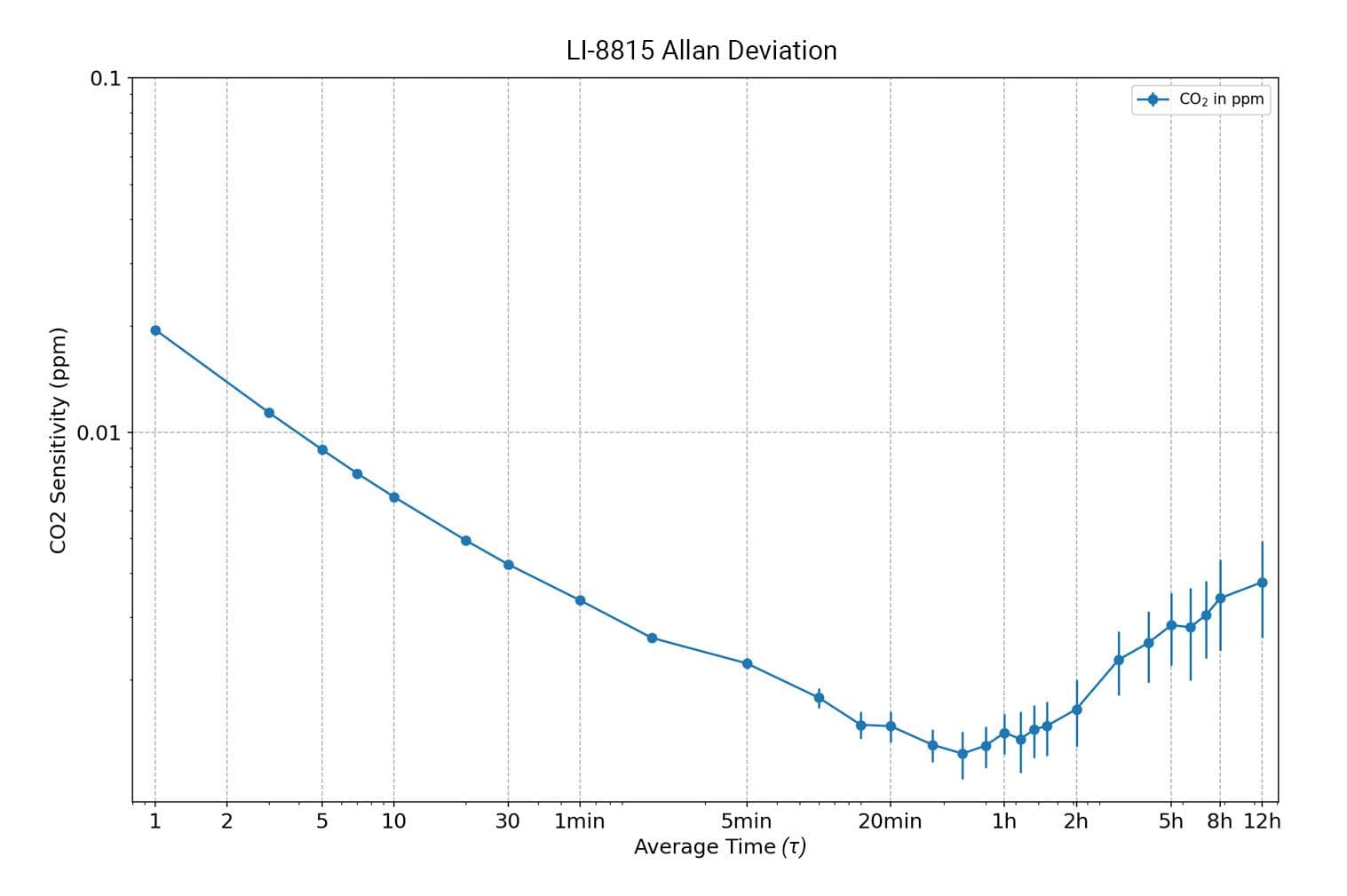

AtmospherIQ gas analyzer

LI-8815

CO2 Performance

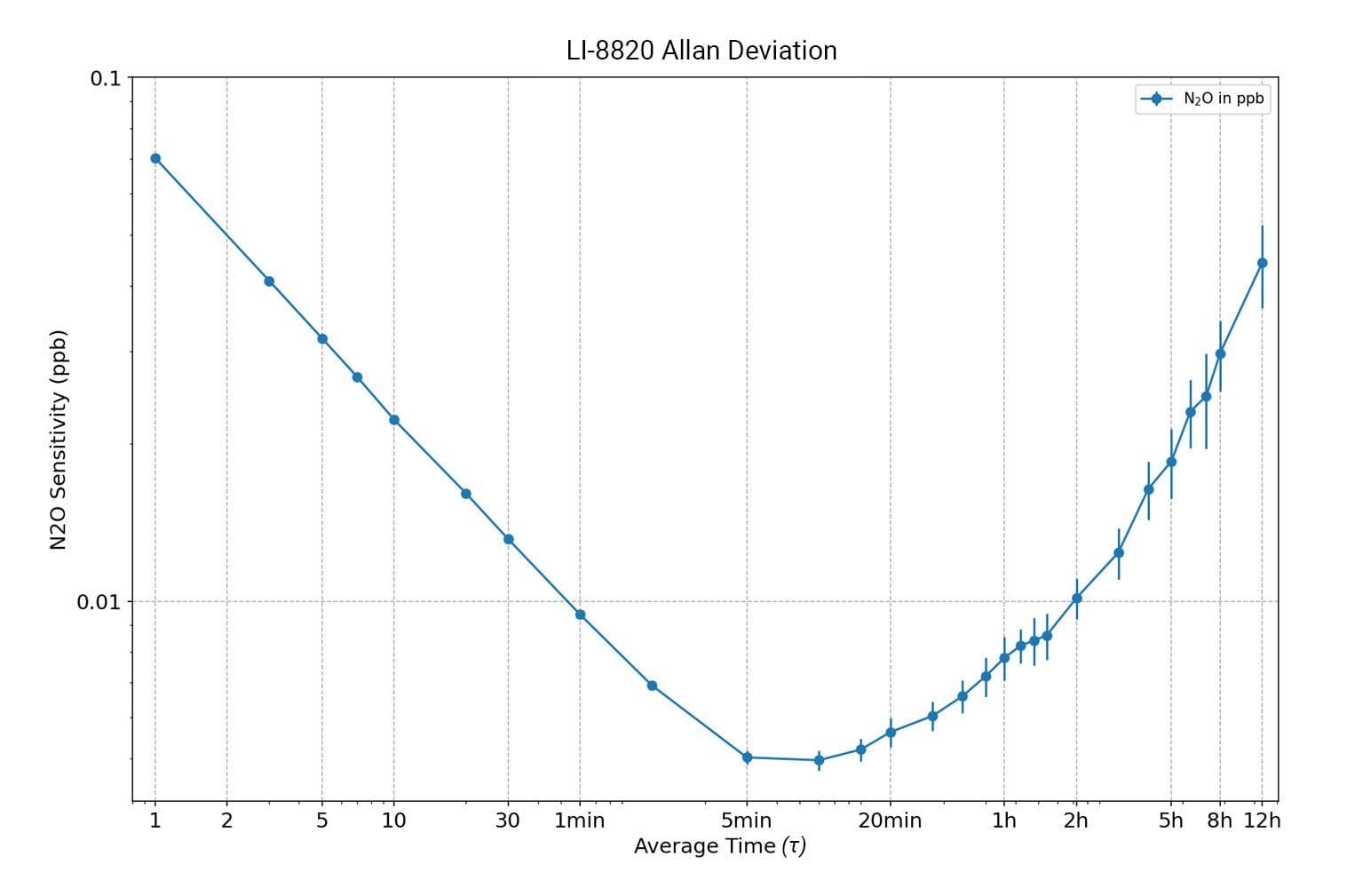

AtmospherIQ gas analyzer

LI-8820

N2O Performance

ICOS COMPLIANCE VERIFICATION

The technology underpinning AtmospherIQ Gas Analyzers has been independently verified by the ICOS Atmosphere Thematic Centre (ATC), Laboratoire des Sciences du Climat et de l'Environnement (LSCE), Paris to appraise precision, drift, pressure stability, water correction, and several other key specifications.

Results show that the AtmospherIQ optical bench meets requirements for compatibility with World Meteorological Organization Global Atmosphere Watch (WMO GAW) and ICOS specifications.

ICOS StandardAtmospherIQ
Analyzer Performance
CH4Precision 1 σ; 1 hour< 0.5 ppb< 0.05 ppb (LI-8810)
Repeatability (1 σ), 10 min avg< 0.5 ppb< 0.4 ppb (LI-8810)
CO2Precision 1 σ; 1 hour< 25 ppb< 10 ppb (LI-8815)
Repeatability (1 σ), 10 min avg< 50 ppb< 45 ppb (LI-8815)
N2OPrecision 1 σ; 1 hour< 0.05 ppb< 0.05 ppb (LI-8820)
Repeatability (1 σ), 10 min avg< 0.1 ppb< 0.1 ppb (LI-8820)

ICOS COMPLIANCE VERIFICATION

The technology underpinning AtmospherIQ Gas Analyzers has been independently verified by the ICOS Atmosphere Thematic Centre (ATC), Laboratoire des Sciences du Climat et de l'Environnement (LSCE), Paris to appraise precision, drift, pressure stability, water correction, and several other key specifications.

Results show that the AtmospherIQ optical bench meets requirements for compatibility with World Meteorological Organization Global Atmosphere Watch (WMO GAW) and ICOS specifications.

ICOS StandardAtmospherIQ
Analyzer Performance
CH4Precision 1 σ; 1 hour< 0.5 ppb< 0.05 ppb (LI-8810)
Repeatability (1 σ), 10 min avg< 0.5 ppb< 0.4 ppb (LI-8810)
CO2Precision 1 σ; 1 hour< 25 ppb< 10 ppb (LI-8815)
Repeatability (1 σ), 10 min avg< 50 ppb< 45 ppb (LI-8815)
N2OPrecision 1 σ; 1 hour< 0.05 ppb< 0.05 ppb (LI-8820)
Repeatability (1 σ), 10 min avg< 0.1 ppb< 0.1 ppb (LI-8820)

SCRIPPS INSTITUTION OF OCEANOGRAPHY ASSESSMENT

Scripps Institution of Oceanography, University of California, USA, completed a series of experiments to assess the performance of analyzers using the AtmospherIQ optical bench, with reference to World Meteorological Organization Global Atmosphere Watch (WMO GAW) inter-laboratory measurement compatibility goals (GGMT-2019). They concluded that “these experiments confirm the suitability of the LI-7810 and LI-7815 instruments for long term measurements of atmospheric methane and carbon dioxide respectively.”

Now, the AtmospherIQ optical bench evaluated at Scripps is optimized for long-term atmospheric monitoring infrastructure.

MACE HEAD TRIAL RESULTS

Instruments with the AtmospherIQ optical bench were deployed for six months at the Atmospheric Research Station at Mace Head, Carna, County Galway, located on the far west coast of Ireland. Instruments were operated in parallel with a CH4/CO2/CO/H2O analyzer, which is permanently installed at the facility and reports data to both ICOS and WMO GAW networks.

Trial results show that instruments with the AtmospherIQ optical bench meet the requirements for ICOS and WMO GAW networks when used with an appropriate calibration strategy.

READ THE REPORT

PERFORMANCE IS MORE THAN A PROMISE

AtmospherIQ Gas Analyzers deliver data that is repeatable, dependable, and traceable to calibration standards. Independent assessments confirm that the performance meets the high standards of monitoring organizations and is comparable to or better than other leading measurement technologies.

AtmospherIQ Gas Analyzers offer comparable or better stability and accuracy than other analyzers used for atmospheric monitoring.

METHANE

The LI-8810 measures methane gas in air with accuracy and precision that exceeds requirements of ICOS and the WMO.

WMO Compatility Goal ICOS Standard (Precision 1 σ)LI-COR LI-8810 (Precision 1 σ)
± 2 ppb< 0.5 ppb (1 hour)< 0.05 ppb (1 hour)
WMO Compatility Goal ICOS Standard (Precision 1 σ)LI-COR LI-8815 (Precision 1 σ)
± 100 ppb / ± 50 ppb*< 25 ppb (1 hour)< 10 ppb (1 hour)

*Southern hemisphere

CARBON DIOXIDE

Atmospheric carbon dioxide measurements by the LI-8815 satisfy standards set by ICOS and the WMO, while overachieving on the stability and precision expectations.

NITROUS OXIDE

Accurate quantification of atmospheric N2O is challenging due to its low ambient concentrations and the subtle variations that demand high precision. With LI-COR's cutting-edge technology, LI-8820 delivers sub-ppb precision N2O measurements that meet requirements of leading atmospheric monitoring organizations.

WMO Compatility Goal ICOS Standard (Precision 1 σ)LI-COR LI-8820 (Precision 1 σ)
± 0.1 ppb< 0.05 ppb (1 hour)< 0.05 ppb (1 hour)

A SIMPLE ADDITION TO ATMOSPHERIC MONITORING INFRASTRUCTURE

By design, it is simple to add an AtmospherIQ Gas Analyzer to existing monitoring infrastructure.

  • Versatile data management and controls support communication with data management infrastructure to simplify data acquisition, instrument calibration, and system monitoring.
  • Built-in data storage automatically records all measurements, events, and performance excursions for robust data quality analysis and redundancy.
  • Low power operation dispels concerns about marginal main power supplies, with compatibility with global main power standards.
  • Backup battery power ensures continuous logging and elegant shutdown if main power is lost.
  • Simple tubing connections for easy addition to measurement infrastructure.
  • Analyzers mount in a standard 19″ instrument rack, occupying four rack units (4U) each.

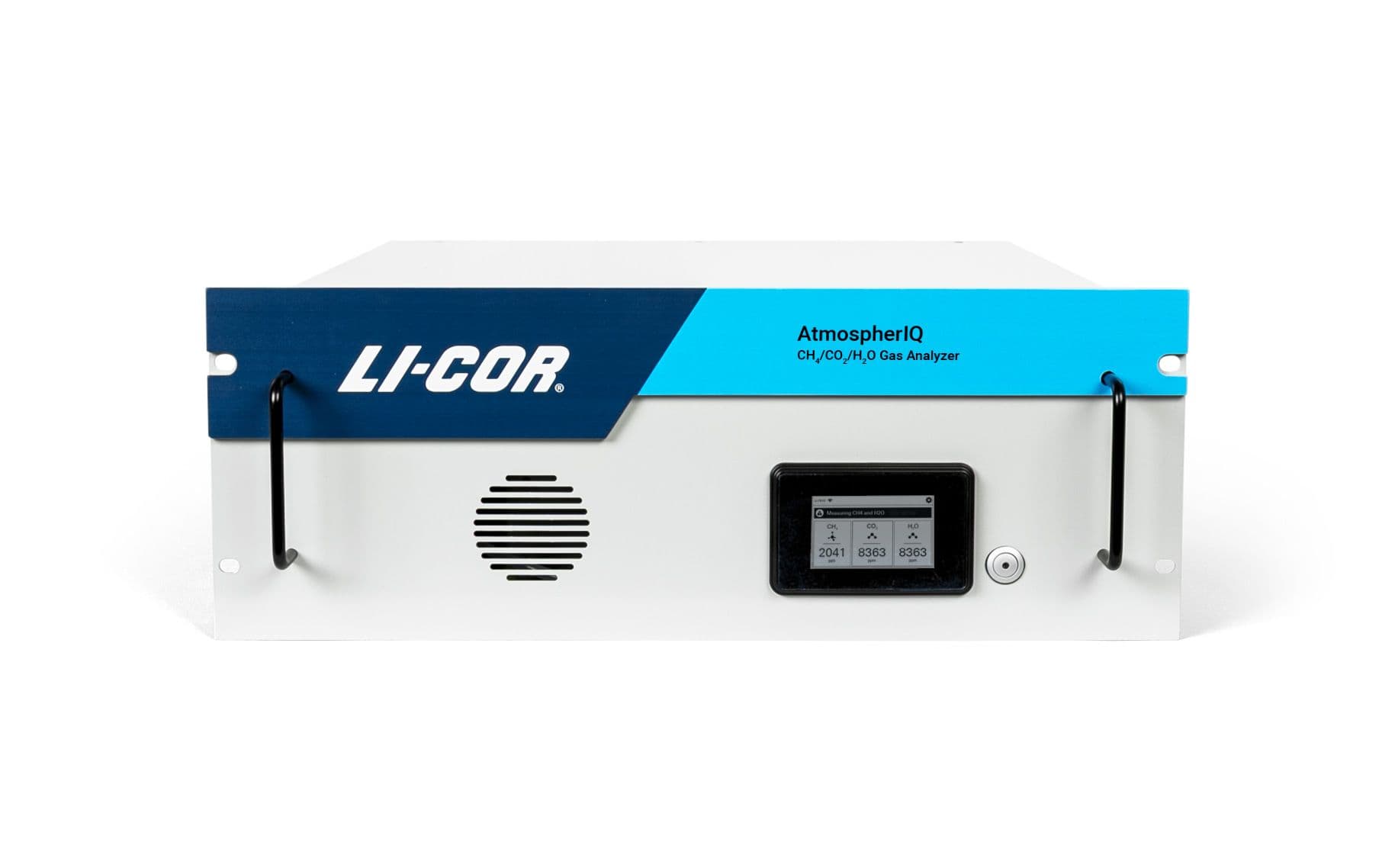

AtmospherIQ gas analyzer

A COMMITMENT TO YOUR SUCCESS

AtmospherIQ Gas Analyzers are designed for durability and low maintenance operation and are backed by technical support from dedicated application scientists.

  • Each AtmospherIQ Gas Analyzer includes a 5-year service agreement with loaner instruments included, if needed.
  • Application scientists and engineers are available to help with installation, programming, and troubleshooting.

You can rest assured that your measurement needs are our priority.

CASE STUDIES AND WEBINARS

The AtmospherIQ optical bench was evaluated at Mace Head research station. Results show that the analyzers are well suited for modern atmospheric monitoring needs.

MEET THE ANALYZERS

LI-8810

CH4/CO2/H2O Gas Analyzer

Learn moreRequest a Quote

LI-8815

CO2/H2O Gas Analyzer

Learn moreRequest a Quote

LI-8820

N2O/H2O Gas Analyzer

Learn moreRequest a Quote
